Manhole Products

Manhole/Manhole Step Products

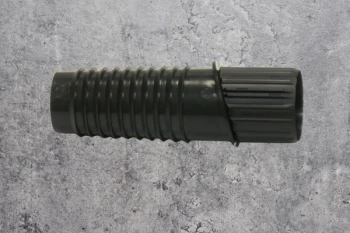

• Break Away Step Insert Lg Leg
  004-510-LLB-C

  Plastic, Tapered Step Insert

  Precision engineered to use only with MA's PS2-PFSL-DF step

  • Forms tapered 1-1/4" diameter step hole
  • Break-Away part of insert installs into steel sleeve
  • Snaps away from sleeve during stripping
  • Fast, efficient, safe manhole step installation

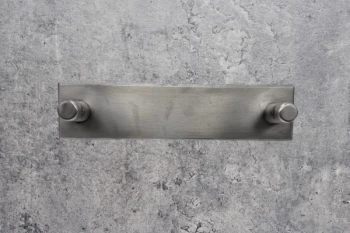

• Flat Magnetic Step Plate 10" CC Insert Horizontal
  004-IF101

  Packaging: Sold by the piece
  Curved plates available upon request.

  Comes in 10" and 13"

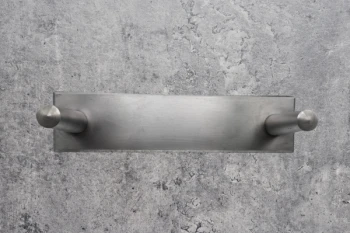

• Magnetic Step Hole Formers
  004-IF131

  Magnetic plates that stick to steel forms for forming step holes most anywhere in structure

  • For round wall and flat wall structures
  • Custom made with pins or locators for step inserts
  • Custom made for any size step
  • Custom made for any diameter manhole
  • Inexpensive alternative to drilling step holes
  • Comes in 10" and 13"

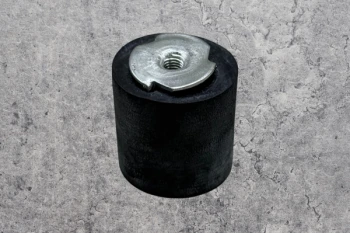

• Nail-On Step Insert Locator Flatwall
  004-501-NFWL

  Packaging: Sold by the piece

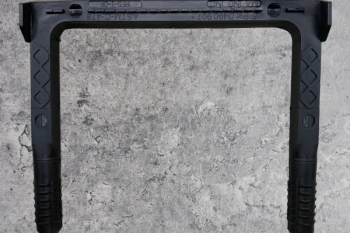

• PFS-1-DF 10" Straight leg
  004-528-DF-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Double Faced Straight legged, non-tapered legs for drilled holes

  • No-Slip tread surface on one side of step
  • 10-1/8" Tread width
  • 10" c-c leg measure
  • Meets ASTM C478, OSHA STD 1910.24 (b)

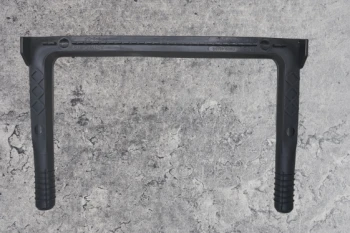

• PFS-2-DF 13" Straight leg
  004-529-DF-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Straight, non-tapered legs for drilled holes and Straight Step Inserts

  • No-Slip tread surface on both sides of step
  • 13-3/8" tread width
  • 13" c-c leg measure
  • Meets ASTM C478, OSHA STD 1910.24 (b)

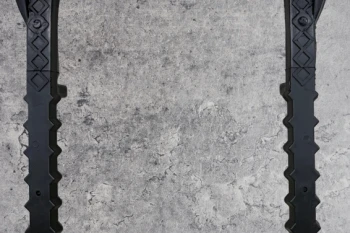

• PS1-B 10" Brick or Block
  004-504-C

   Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Specifically designed for installation into underground brick or block structures

  • No-Slip tread surface on one side of step
  • 10-1/2" tread width
  • 10" c-c leg measure
  • Can be grouted in with non-shrink grout or epoxy
  • Meets ASTM C478, OSHA STD 1910.24 (b)

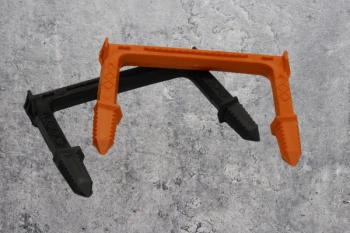

• PS1-DIS-DF 10" Dry Cast Double face
  004-506-DF-C



   Steel-Reinforced Plastic Manhole Step



  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into green, dry-cast concrete with no preformed holes

  • No-Slip tread surface on both sides of step
  • 10-3/8" tread width
  • 10" c-c leg measure
  • 3-5/16" embedment depth
  • Meets ASTM C478, OSHA STD 1910.24 (b)

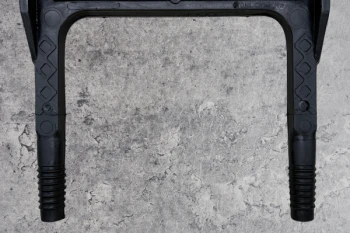

• PS1-PF 10" Single face
  004-501-C



  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-Slip tread surface on one side of the step
  • 10" c-c leg measure
  • 10-3/4" tread width
  • Meets ASTM C478, OSHA STD 1910.24 (b)

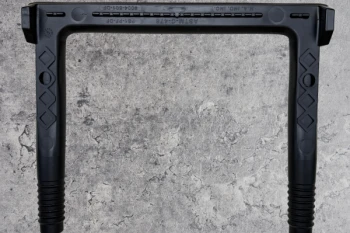

• PS1-PF-DF 10" Double face
  004-501-DF-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-slip tread surface on both sides of step
  • 10-1/2" tread width
  • 10" c-c leg measure
  • Meets ASTM C478, OSHA STD 1910.24 (b)

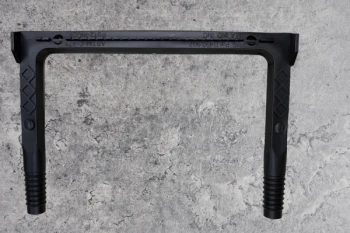

• PS12-PF-DF 12" Double face
  004-530-DF-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-slip tread surface on both sides of step
  • 12-1/2" tread width
  • 12" c-c leg measure
  • Meets ASTM C478, OSHA STD 1910.24 (b)

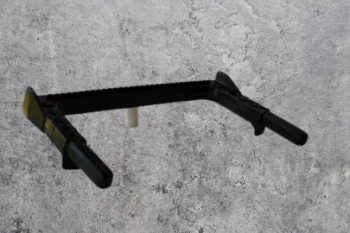

• PS2-B 13" Square leg
  004-507-C

   Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Use only with Flex-Loc step inserts

  • No-slip tread surface on one side of step
  • 13-3/4" tread width
  • 13" c-c leg measure
  • Meets ASTM C478, OSHA STD 1910.24 (b)

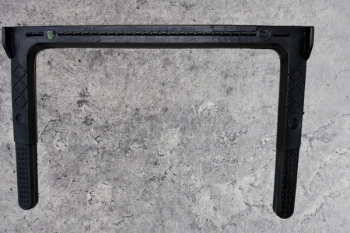

• PS2-B-DF 13" DF Square leg
  004-507-DF-C

    Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Use only with Flex-Loc step inserts

  • No-slip surface on both sides of step
  • 13-1/2" tread width
  • 13" c-c leg measure
  • Meets ASTM C478, OSHA STD 1910.24 (b)

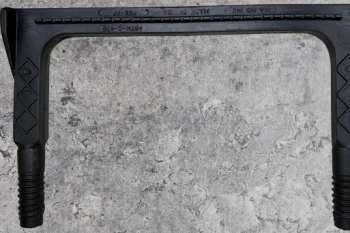

• PS2-PF 13" Single face
  004-510-C

   Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-Slip tread surface on one side of step
  • 13-3/4" tread wdth
  • 13" c-c leg measure
  • Meets ASTM C478, OSHA STD 1910.24 (b)

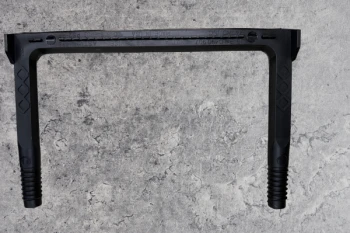

• PS2-PF-DF 13" Double face
  004-510-DF-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-slip surface on both sides of step
  • 13" c-c leg dimension
  • 13-1/2" tread width
  •  Meets ASTM C478, OSHA STD 1910.24 (b)

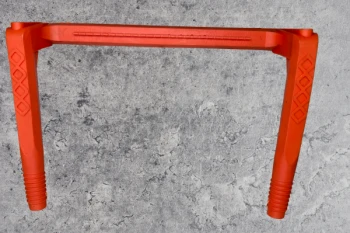

• PS2-PF-DRP 13" Drop step
  004-510-DRP-O-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

   Drop-Front design to be installed into pre-formed, tapered step holes

  • No-Slip tread surface on one side of the step
  • 13" c-c leg dimension
  • 11-13/16" tread width
  • Meets ASTM C 478, OSHA STD 1910.24 (b)

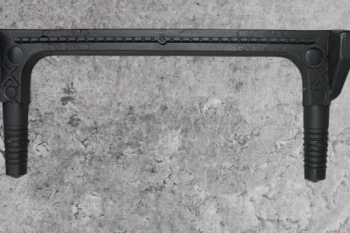

• PS2-PF-HH 13" Hand Hold
  004-515-C

  Steel-Reinforced Plastic Handle

  To providing a handle to aid in accessing underground sewer and utility structures

  Designed to be installed in pre-formed holes near the opening of concrete structures

  • Although similar, NOT TO BE USED AS A MANHOLE STEP
  • No-Slip tread surface on one side of step
  • 13" c-c leg measure
  • 14" grasp width
  • 3-1/8" projection

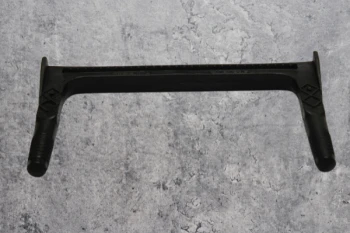

• PS2-PFS 13" Short leg
  004-511-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-Slip tread surface on one sie of the step
  • 13" c-c leg measure
  • 13-3/4" tread width
  • Meets ASTM C 478, OSHA STD 1910.24 (b)

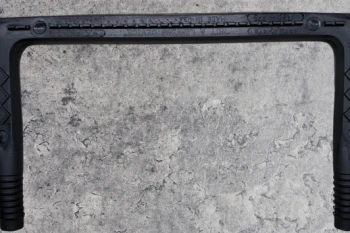

• PS2-PFS-DF 13" DF Short leg
  004-511-DF-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-Slip tread surface on both sides of the step
  • 13" c-c leg measure
  • 13-1/2" tread width
  • 5-1/16" projection
  • Meets ASTM C 478, OSHA STD 1910.24 (b)

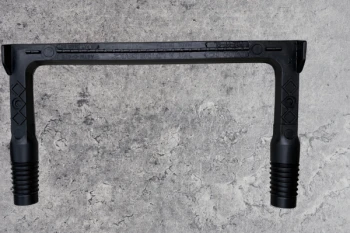

• PS2-PFSL-DF 13" Lg Leg Double face
  004-512-DF-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-Slip tread surface on both sides of the step
  • 1-1/4" diameter step hole
  • 13" c-c leg dimension
  • 13-1/2" tread width
  • Meets ASTM C 478, OSHA STD 1910.24 (b)

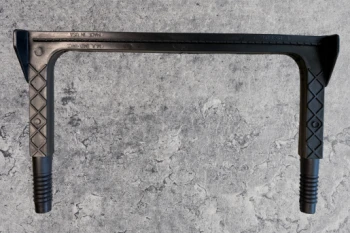

• PS3-PFC 16" Single face
  004-516-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes

  • No-Slip tread design on one side of step
  • 16" c-c leg measure
  • 16-3/4" tread width
  • 7" projection
  • Meets OHSA requirements for Fixed Ladder

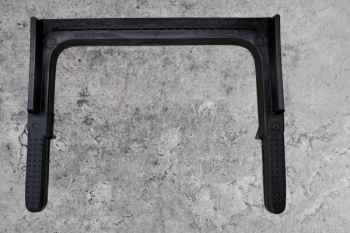

• PS4-B 11" Square leg
  004-519-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Use only with Flex-Loc step inserts

  • No-Slip tread surface on one side of the step
  • 11" c-c leg measure
  • 10-3/4" tread width
  • Meets ASTM C 478, OSHA STD 1910.24 (b)

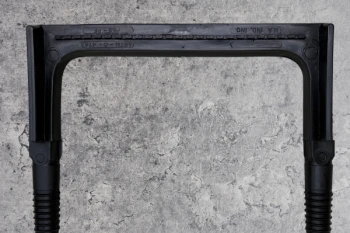

• PS5-PF 11" Single face
  004-521-C

  Steel-Reinforced Plastic Manhole Step

  For forming a ladder to access underground sewer and utility structures

  Designed to be installed into tapered preformed holes or drilled holes

  • No-Slip tread design on one side of step
  • 11" c-c leg measure
  • 10-3/4" tread width

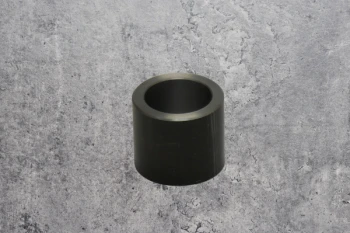

• Sleeve for Break Away Flatwall Step Insert
  004-501-SLF

  Steel Sleeves for Step Inserts Break-Away

  • Welds to form's core
  • Provides permanent locator for MA's RW & FW Step Inserts

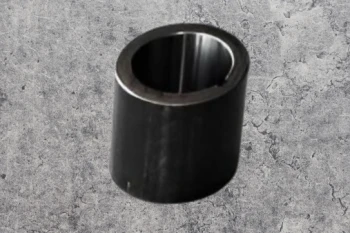

• Sleeve for Break Away Roundwall Step Insert
  004-510-SL

  Round wall
  Packaging: Sold by the piece

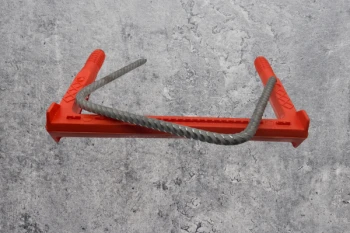

• Stainless Steel Step
  004-510-DF-SS-O-C

  Stainless Steel Reinforcement. Available for the PS1, PS2, PFS1, PFS2. Available in Black and Orange.

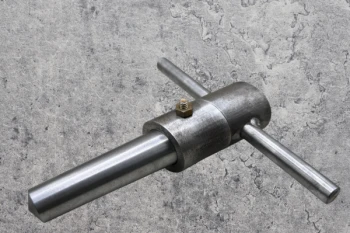

• Step Cam Pins
  004-652

  Steel, Tapered Cam Pins

  For pre-forming tapered step holes

  • Includes sleeve and locking pin
  • Custom made for any size manhole
  • Custom made for any size step

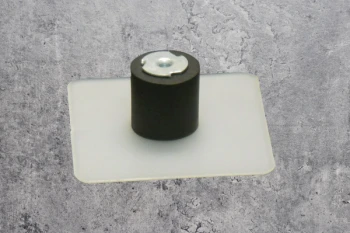

• Stick On Flatwall Step Insert Locators
  004-501-SFWL

  Rubber Locators for Flat Wall Step Inserts

  • Stick-On locators can be glue to form with silicone
  • Nail-On locators can be nailed or screwed to form
  • Inexpensive alternative to drilling step holes

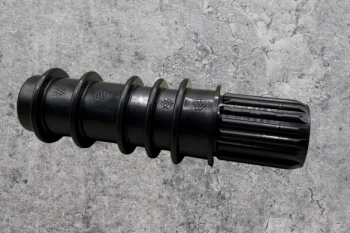

• Straight Leg Insert Flatwall with Breakaway
  004-40001-1

  Plastic, Straight legged Step Insert with Breakaway for use with PFS-1 and PFS-2 Steps



  • Precision engineered to use with MA Press-Fit Steps
  • Breakaway part of insert installs into steel sleeve
  • Snaps away from sleeve during stripping
  • Fast, efficient, safe manhole step installation

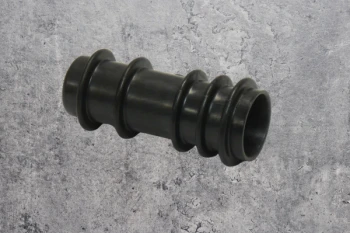

• Straight Leg Insert Flatwall without Breakaway
  004-501-S

  Plastic, Straight Legged Step Insert for use with PFS-1 and PFS-2 Steps



  • Precision engineered to use with MA Press-Fit Steps
  • Inexpensive alternative to drilling step holes
  • Fast, efficient, safe manhole step installation

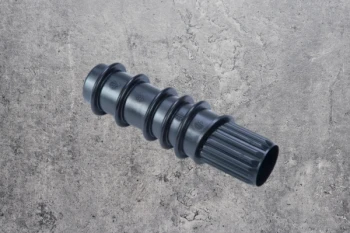

• Straight Leg Insert Roundwall with Breakaway
  004-40002-1

  Plastic, Straight Legged Step Insert with Breakaway for use with PFS-1 and PFS-2 Steps



  • Precision engineered to use with MA Press-Fit Steps
  • Inexpensive alternative to drilling step holes
  • Fast, efficient, safe manhole step installation

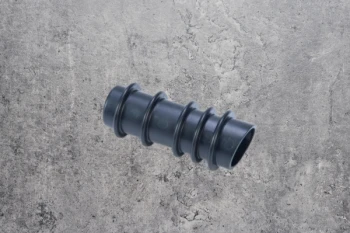

• Straight Leg Insert Roundwall without Breakaway
  004-40003-1

  Plastic, Straight Legged Step Insert for use with PFS-1 and PFS-2 Steps



  • Precision engineered to use with MA Press-Fit Steps
  • Inexpensive alternative to drilling step holes
  • Fast, efficient, safe manhole step installation

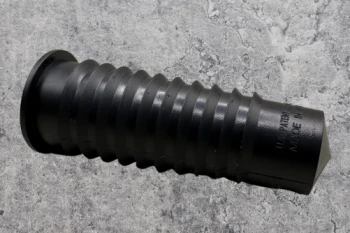

• Tapered Step Insert Flatwall without Break-Away
  004-501-INFBW-C

  Plastic, Tapered Step Insert



  • Precision engineered to use with MA Press-Fit Steps
  • Inexpensive alternative to drilling step holes
  • Fast, efficient, safe manhole step installation

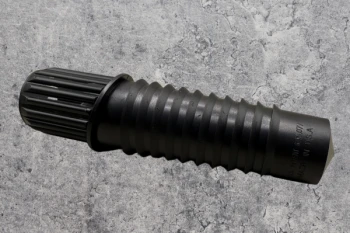

• Tapered Step Insert Roundwall with Break-Away
  004-501-IN-C

  Precision engineered to use with MA Press-Fit Steps Inexpensive alternative to drilling step holes Fast, efficient, safe manhole step installation

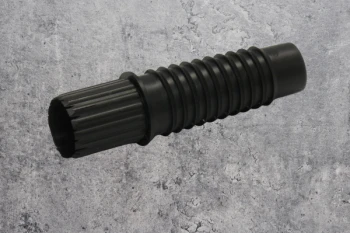

• Tapered Step Flatwall with Break-Away
  004-501-INF-C

  Plastic, Tapered Step Insert



  • Precision engineered to use with MA Press-Fit Steps
  • Breakaway part of insert installs into steel sleeve
  • Snaps away from sleeve during stripping
  • Fast, efficient, safe manhole step installation

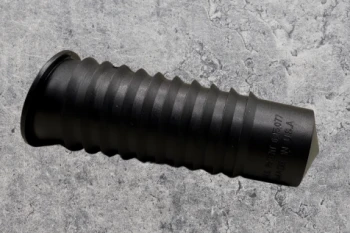

• Tapered Step Inserts without Break-Away
  004-501-INNB-C

  Plastic, Tapered Step Insert



  • Precision engineered to use with MA Press-Fit Steps
  • Inexpensive alternative to drilling step holes
  • Fast, efficient, safe manhole step installation
