Utility Vault Products

Utility Vault Products

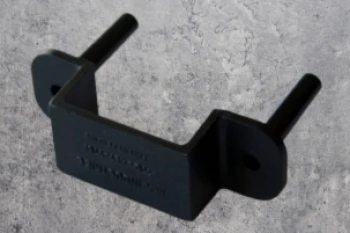

• Uni Strut Clamp
  004-450-C

  Provides easy way to hold uni strut to form when manufacturing utility vaults

  • Taps into preformed holes in form
  • Snaps away from form during stripping

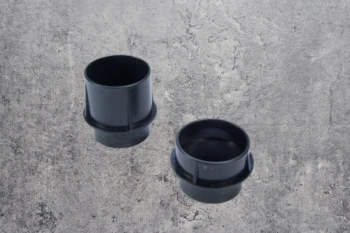

• 1" Extender for 2" VCT
  004-40004-2

  1" extension for the 2" terminators to extend the length of the terminator for different precast wall thicknesses.

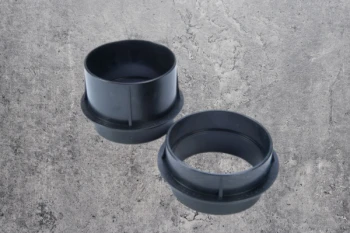

• 1" Extender for 3" VCT
  004-40006-2

  1" extension for 3" Terminators to increase the length of the terminator for different precast wall thicknesses.

• 1" Extender for 4.5" VCT
  004-40008-2

  1" extension for 4.5" Terminators to increase the length of the terminator for different precast wall thicknesses.

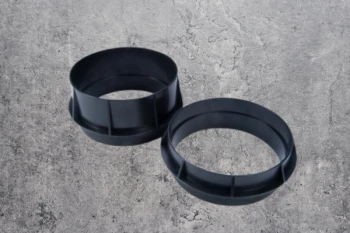

• 1" Extender for 5" VCT
  004-40010-2

  1" extension for 5" Terminators to increase the length of the terminator for different precast wall thicknesses.

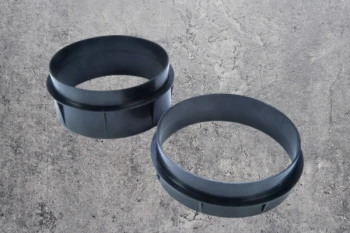

• 1" Extender for 6" VCT
  004-40012-2

  1" extension for 6" Terminators to increase the length of the terminator for different precast wall thicknesses.

• 2" Extender for 2" VCT
  004-40005-2

  2" extension for 2" Terminators to increase the length of the terminator for different precast wall thicknesses.

• 2" Extender for 3" VCT
  004-40007-2

  2" extension for 3" Terminators to increase the length of the terminator for different precast wall thicknesses.

• 2" Extender for 4.5" VCT
  004-40009-2

  2" extension for 4.5" Terminators to increase the length of the terminator for different precast wall thicknesses.

• 2" Extender for 5" VCT
  004-40011-2

  2" extension for 5" Terminators to increase the length of the terminator for different precast wall thicknesses.

• 2" Extender for 6" VCT
  004-40013-2

  2" extension for 6" Terminators to increase the length of the terminator for different precast wall thicknesses.

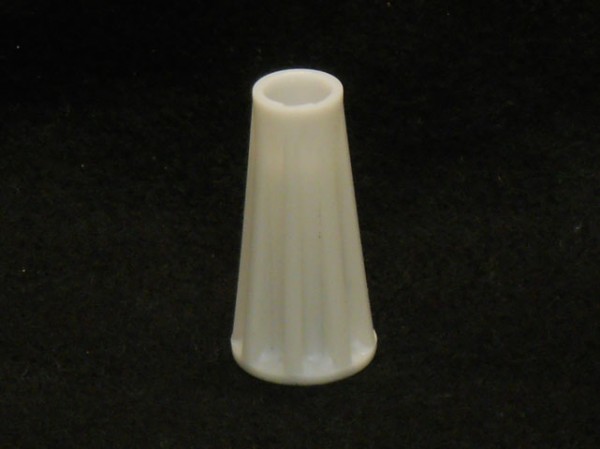

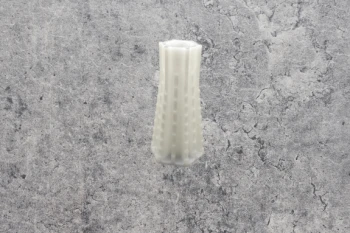

• ½" Anchor Inserts & Locators
  004-400-C

   Plastic, threaded insert cast into walls of concrete structures to accept 1/2" diameter bolt

  • Non corrosive, chemically resistant plastic
  • Thread NC 13
  • Deep grooves for maximum pull-out resistance

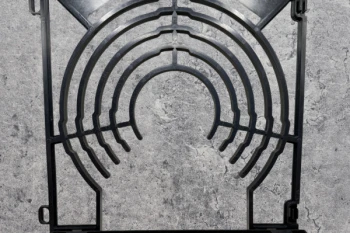

• Duct Terminator Grids & Spacing Bars
  004

  Plastic, snap-together grid for assembling terminator banks

  • 8” center-to-center spacing
  • 1" Spacing Bar for additional spacing
  • Sits back away from wall surface

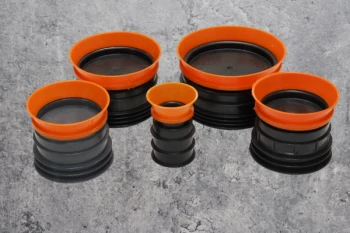

• Duct Terminators 2", 3", 4.3", 4.5", 5", & 6"
  004-40052-2 (2")

  Sturdy, plastic sleeves cast into walls of utility vault that provide a portal when tying in cable conduit

  • Size 2", 3", 4.3", 4.5", 5" and 6" diameter
  • Accepts sch 40 PVC conduit except 4.35" dia.
  • 4" available in 4.5" ID, 4.35" ID and Step-down version
  • 2” glue surface
  • Available for 4” and 6" wall thickness
  • Made of sturdy ABS plastic

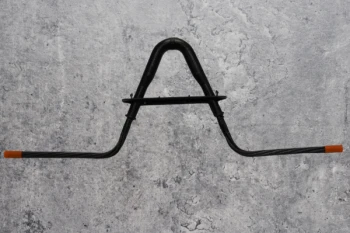

• Pulling Iron
  004-570-C

  Cast into walls and floors of concrete structure to act as a strong anchor point when pulling cable

  • SWL 7500 lbs ea, 4:1 safety ratio
  • ½” diameter uncoated 7 wire strand, 270k low relaxation, heat treated
  • Metal tubing around pick point for added strength
  • Pick point encapsulate with plastic to prevent corrosion

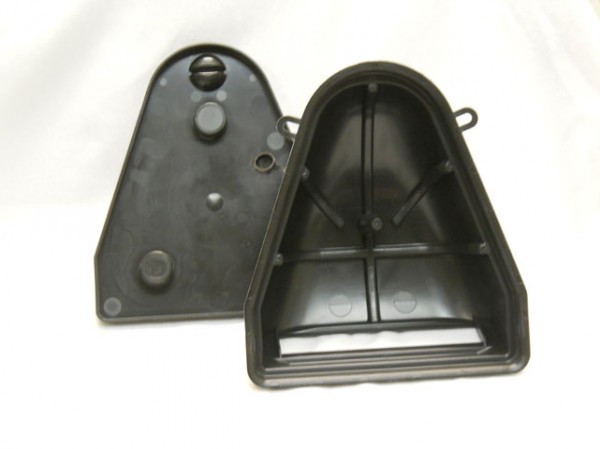

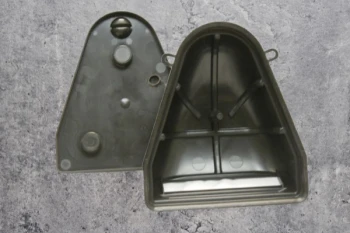

• Pulling Iron Pocket
  004-573-C

  Plastic pocket for recessing Pulling Irons into walls and floors of concrete structures

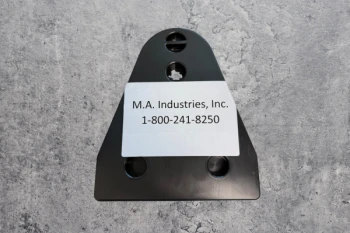

  • Detachable Lid
  • Stem correctly positions Pulling Irons

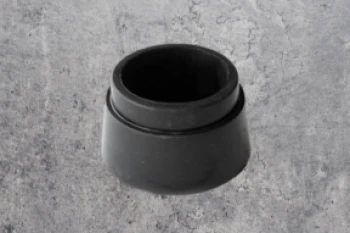

• Rubber Locator for Duct Terminator
  004

  Securely holds Duct Terminators in form when manufacturing utility vaults

  • Made of durable neoprene rubber for continued reuse
  • For wall thickness of 4” to 6”
  • Available in Magnetic versions

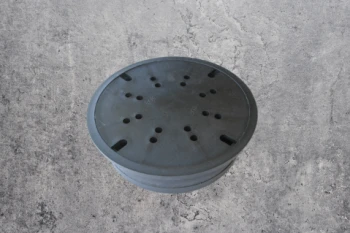

• Sump Pan & Lid
  004-530K-S-C

  Plastic pan cast in the floor of utility vaults to provide a convenient low point when pumping water out

  • Made of high strength plastic
  • Lid snaps to pan and also attached w/nylon rope
